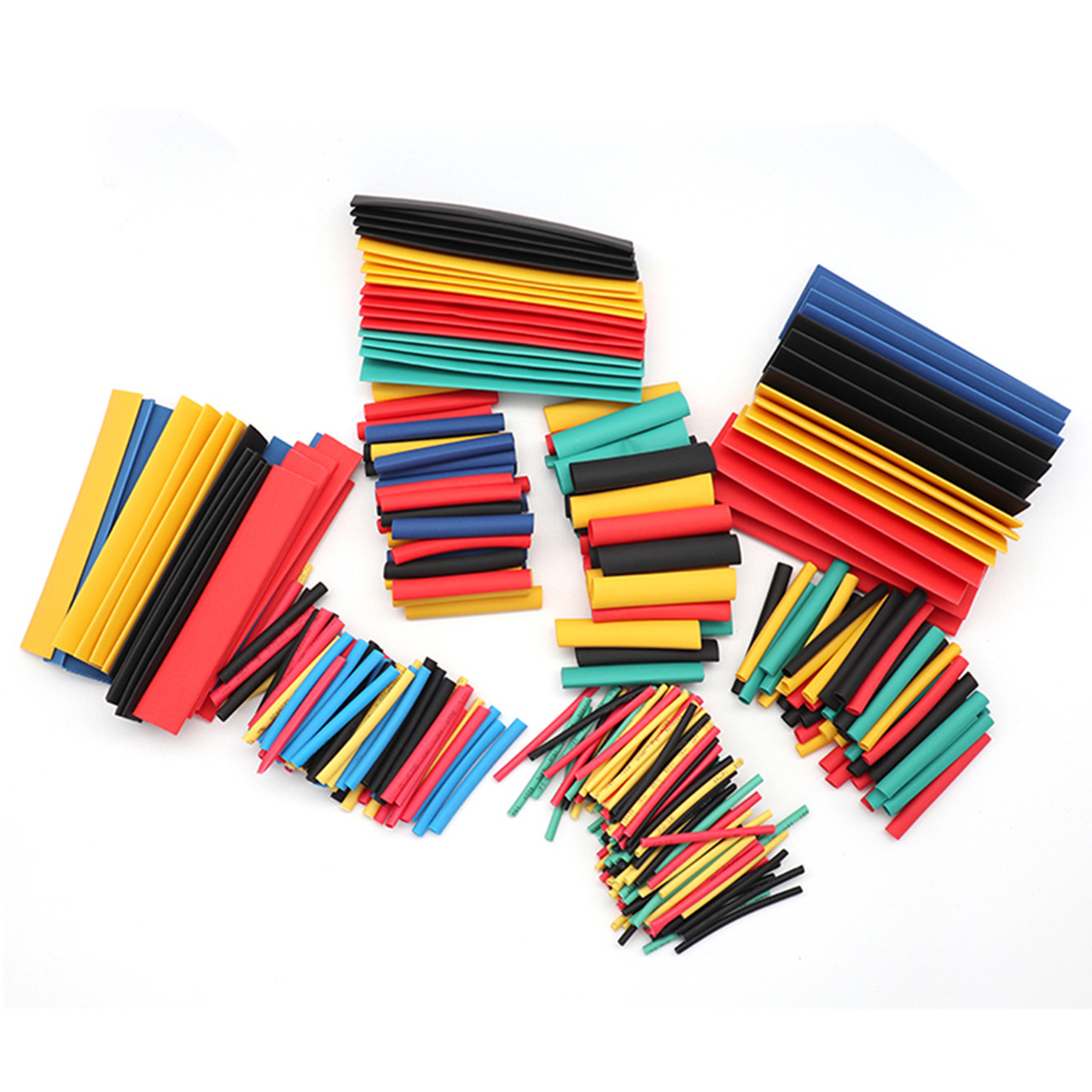

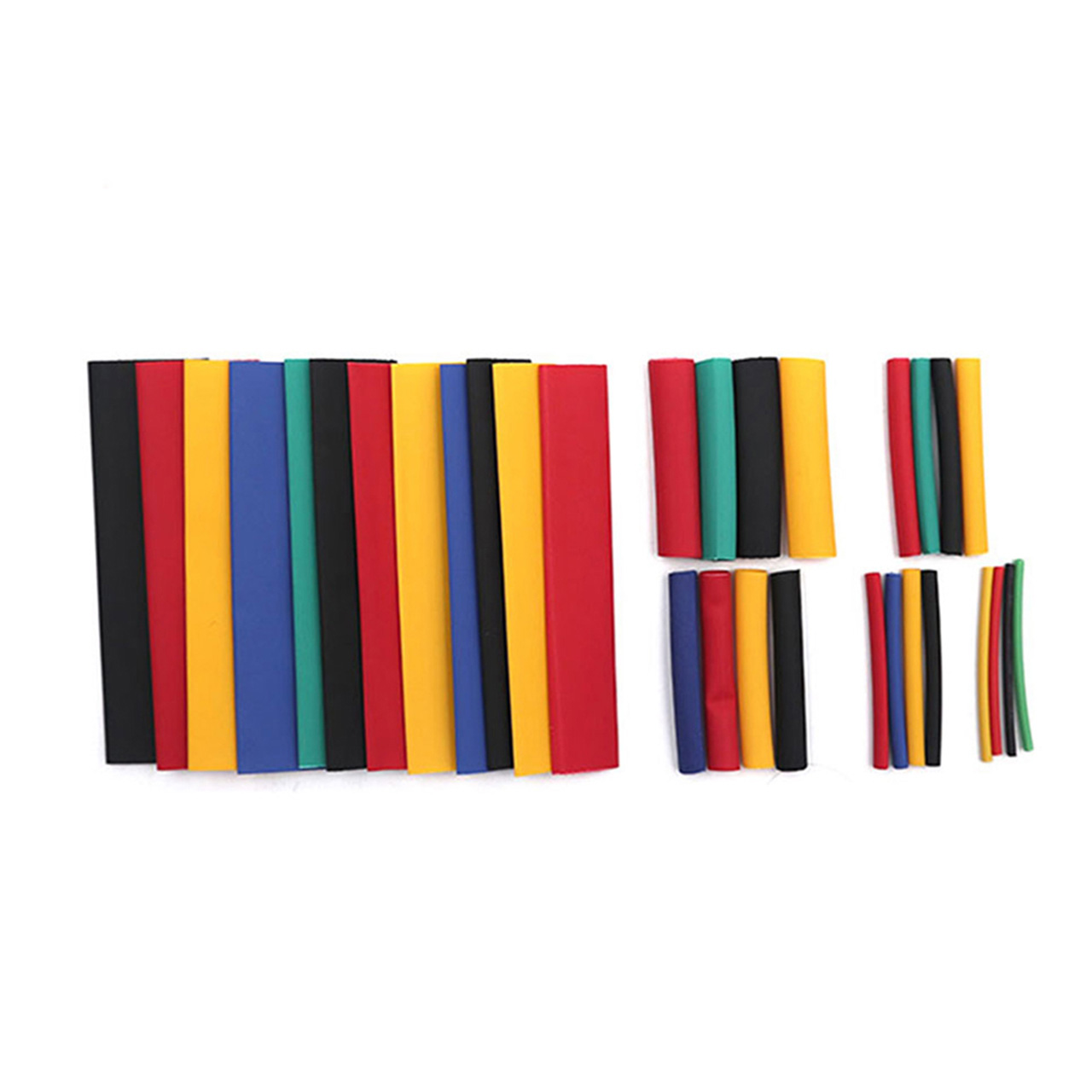

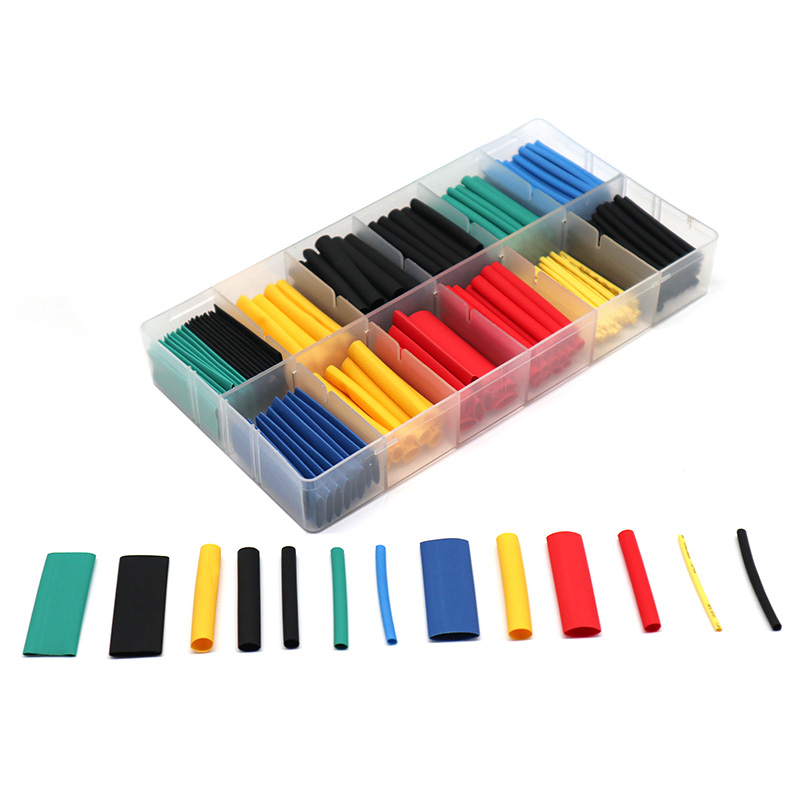

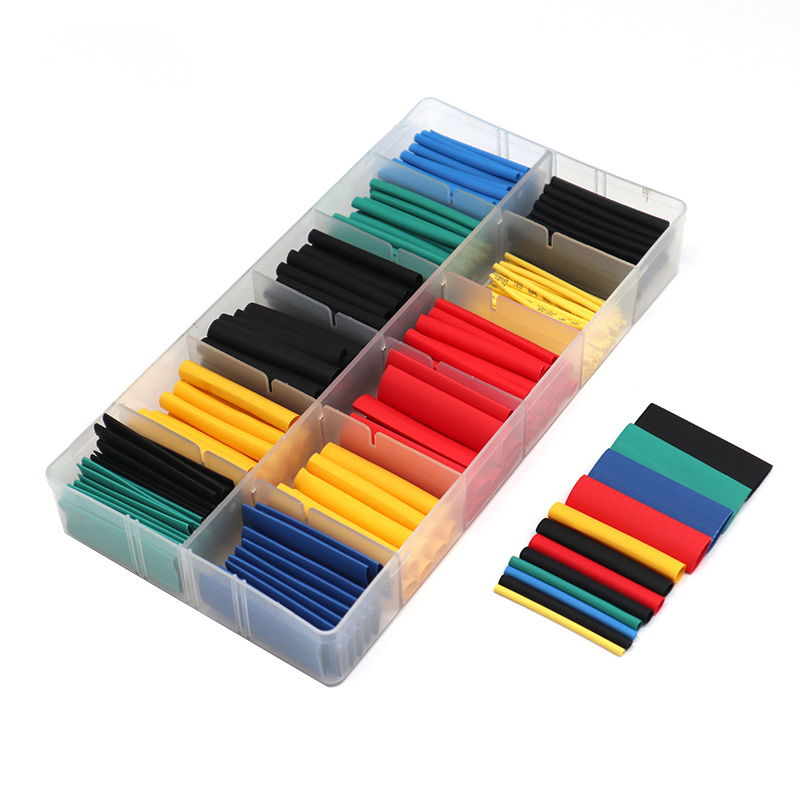

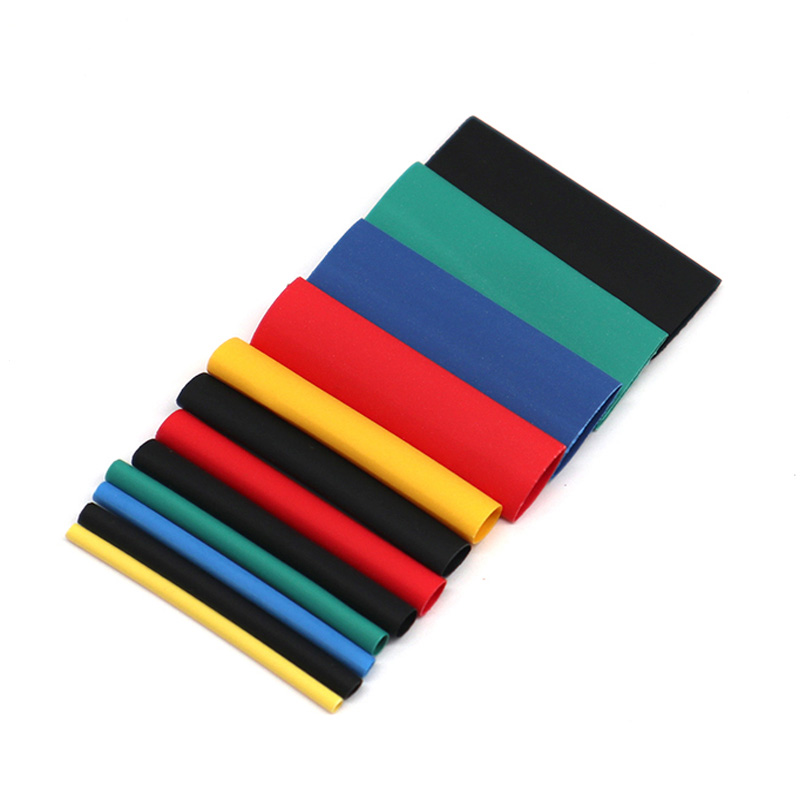

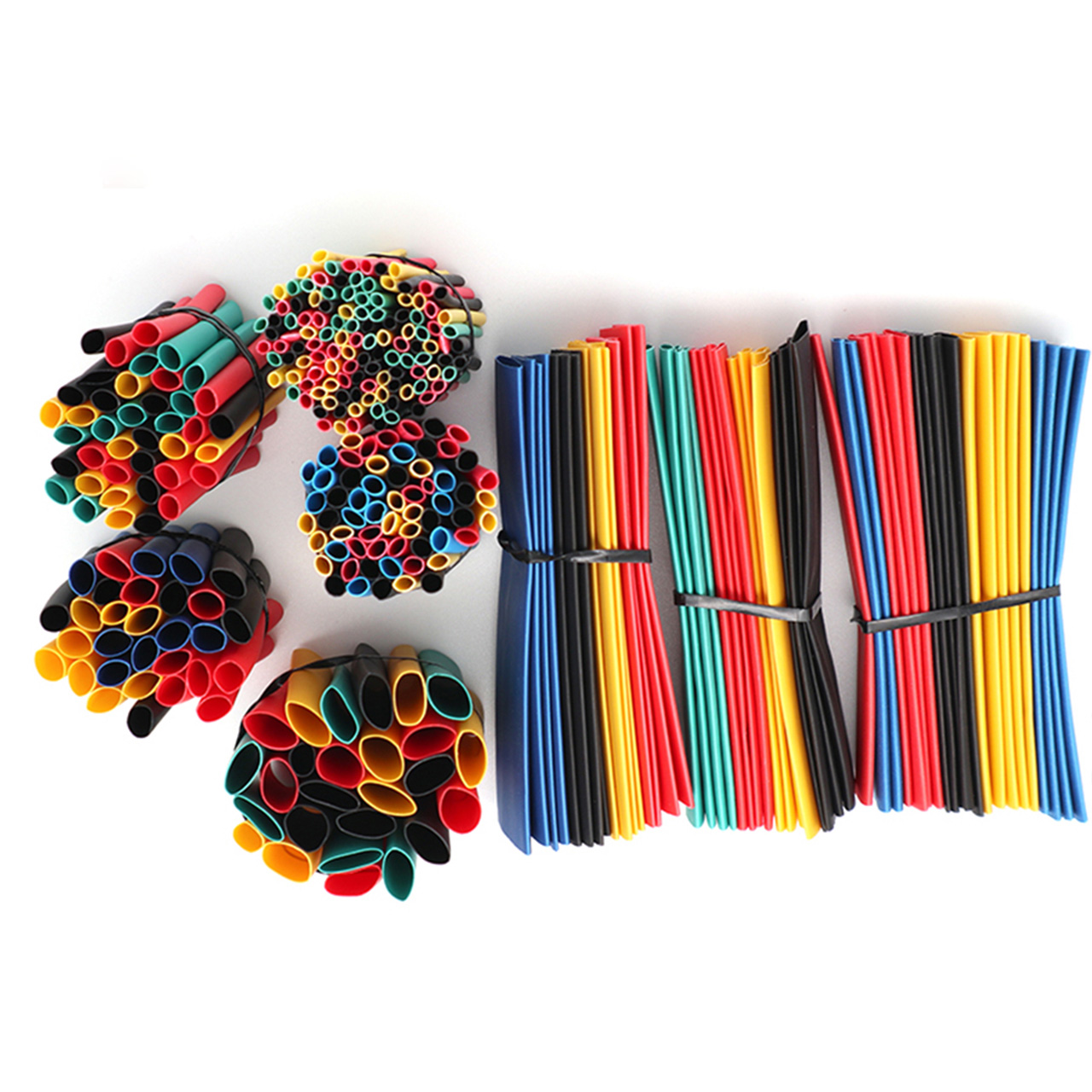

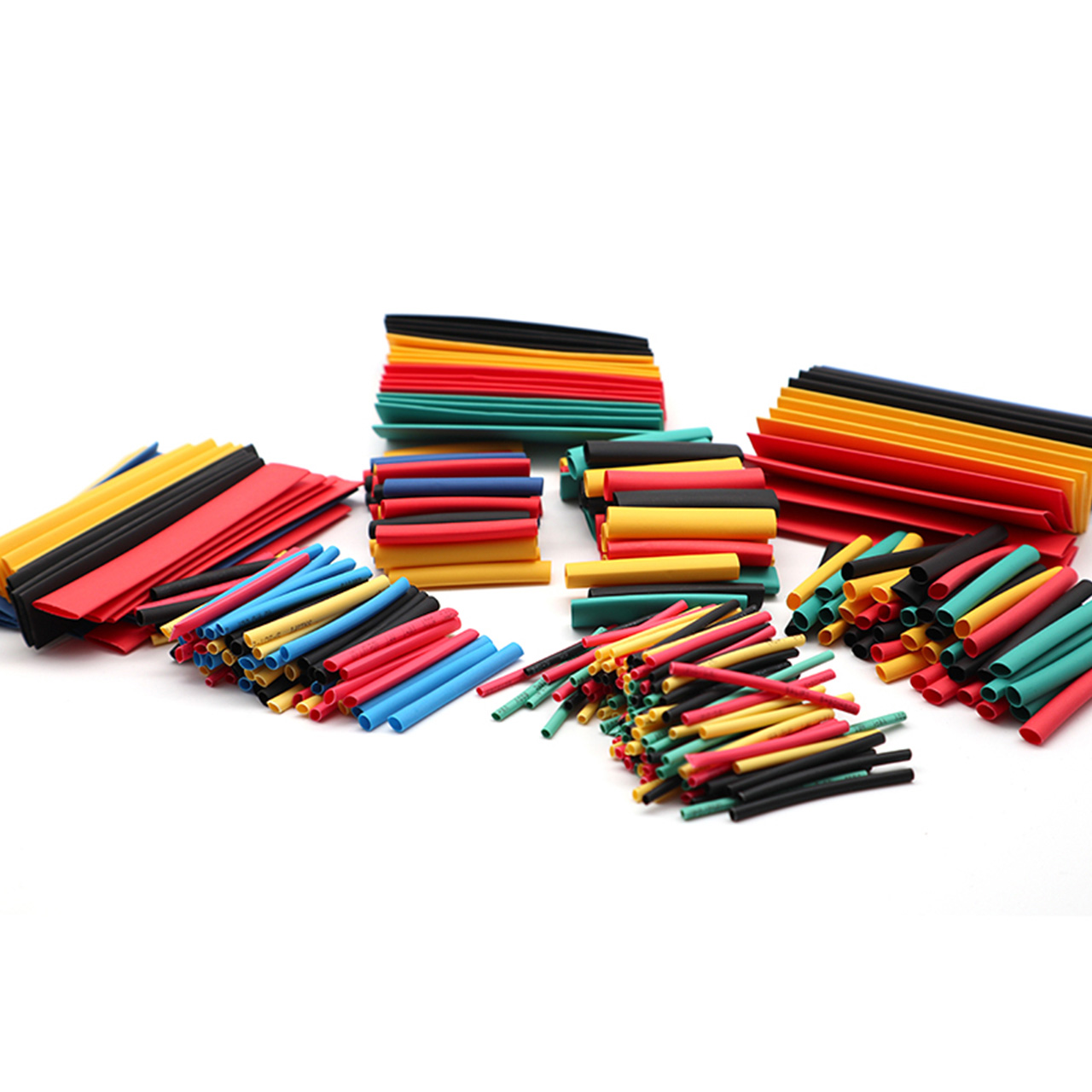

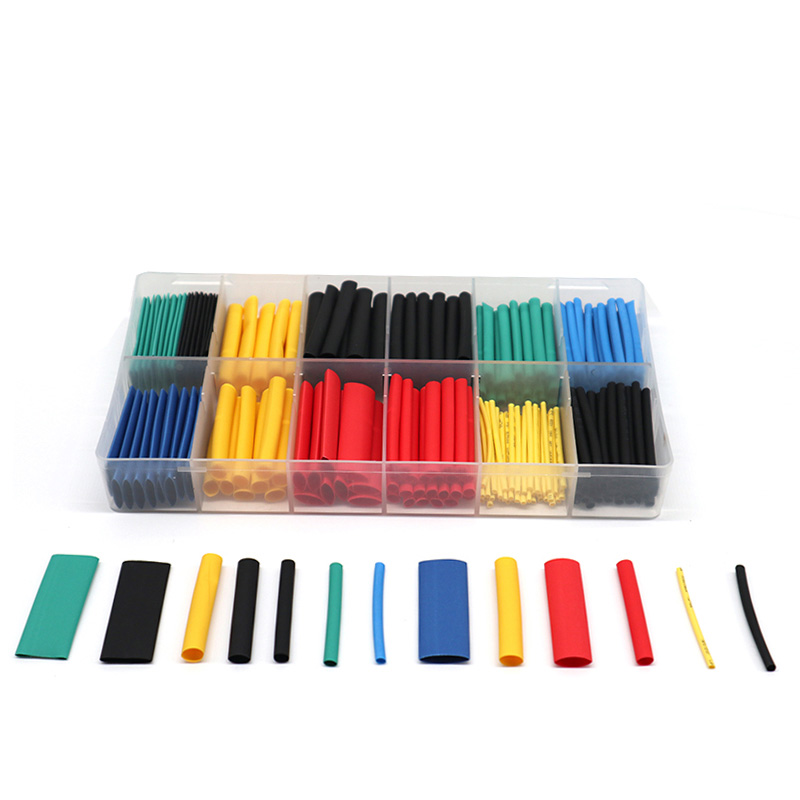

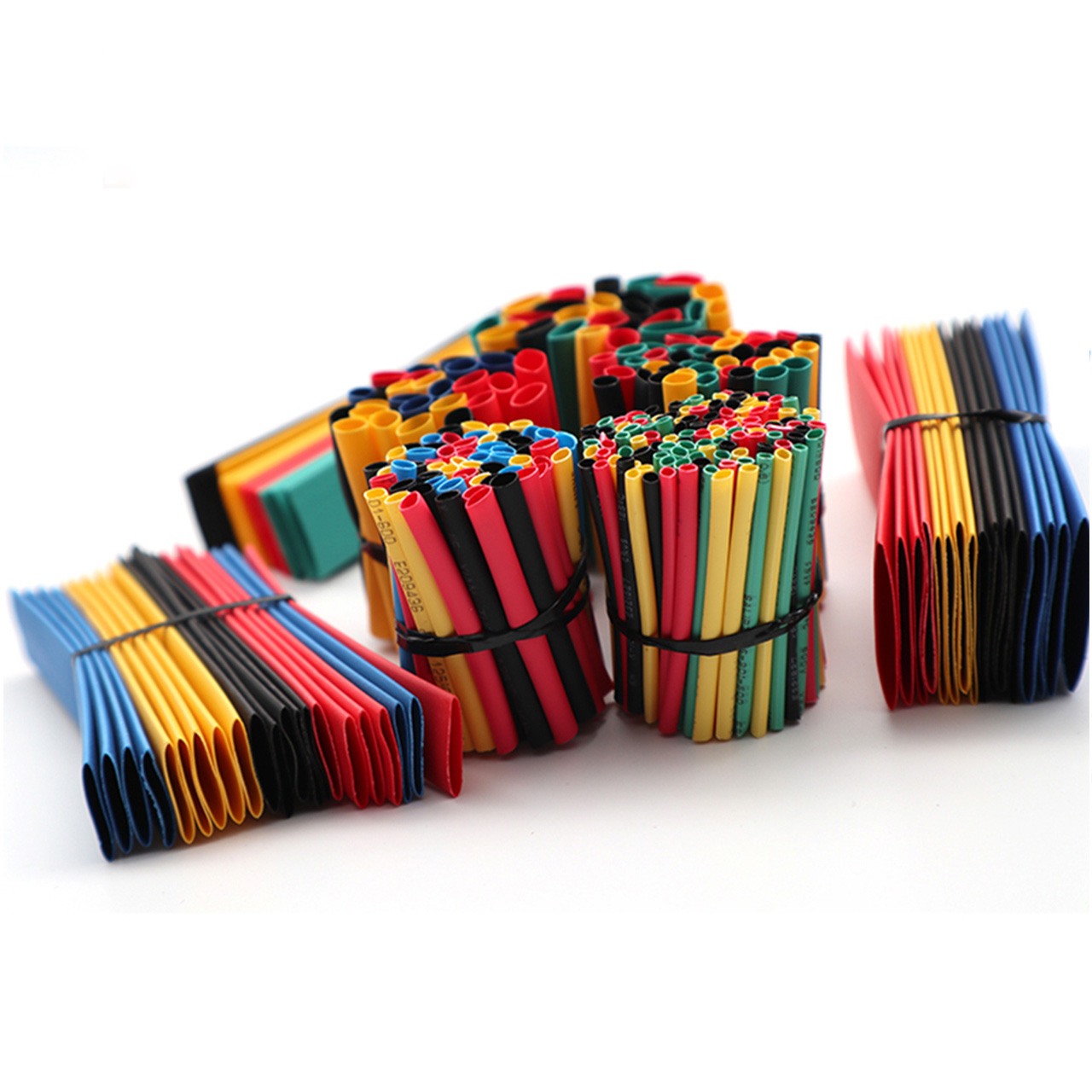

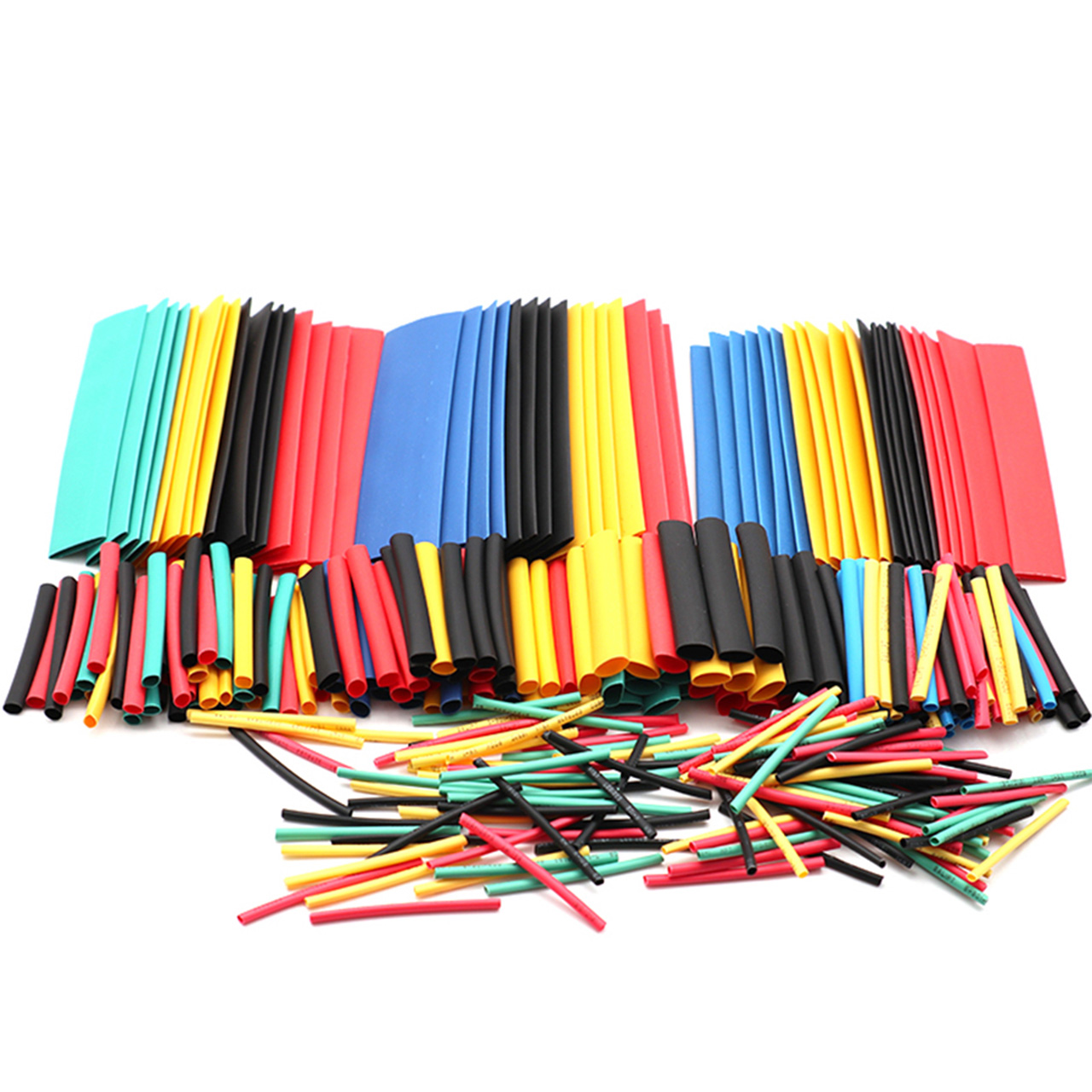

Heat Shrink Tubing

Overview

Technical specifications:	Performance
Product name:	Heat Shrink Tube
Brand Name:	TEFTEX
Production Certificate:	ISO9001 UL224 RoHS
Place of Origin:	Zhejiang, China
Material:	PE, Polyolefin
	Halogen free/ flame retardant/low smoke emission
Rated Voltage:	1kV
Minimum Shrinkage Temp:	≥70°C
Full shrinkage temperature:	≥125°C
Item Shape:	Round/Flat
Type:	Insulation Sleeving
Application:	LOW VOLTAGE
Tensile Strength:	10.4Mpa
Operating Temperature:	-55°C + 125°C
Full Shrinkage Temp:	+110°C Maximum
Dielectric Strength:	1KV/mm
Shrinkage ratio:	2:1

Type	Length	Diameter pre-shrinkage	Diameter post-shrinkage	Color
Type	Length	Diameter pre-shrinkage	Diameter post-shrinkage	Color
DRS-1	200	1	0.5	black green blue yellow red white brown grey orange Yellow-Green
DRS-1.5	200	1.5	0.75
DRS-2	200	2	1
DRS-2.5	200	2.5	1.25
DRS-3	200	3	1.5
DRS-3.5	200	3.5	1.75
DRS-4	200	4	2
DRS-4.5	200	4.5	2.25
DRS-5	200	5	2.5
DRS-6	200	6	3
DRS-7	100	7	3.5
DRS-8	100	8	4
DRS-9	100	9	4.5
DRS-10	100	10	5
DRS-11	100	11	5.5
DRS-12	100	12	6
DRS-13	100	13	6.5
DRS-14	100	14	7
DRS-15	100	15	7.5
DRS-16	100	16	8
DRS-18	100	18	9
DRS-20	100	20	10
DRS-22	100	22	11
DRS-25	25	25	12.5
DRS-30	25	30	15
DRS-35	25	35	17.5
DRS-40	25	40	20
DRS-45	25	45	22.5
DRS-50	25	50	25
DRS-60	25	60	30
DRS-70	25	70	35
DRS-80	25	80	40
DRS-90	25	90	45
DRS-100	25	100	50
DRS-120	25	120	60
DRS-150	25	150	75
DRS-180	25	180	90
DRS-200	25	200	100
